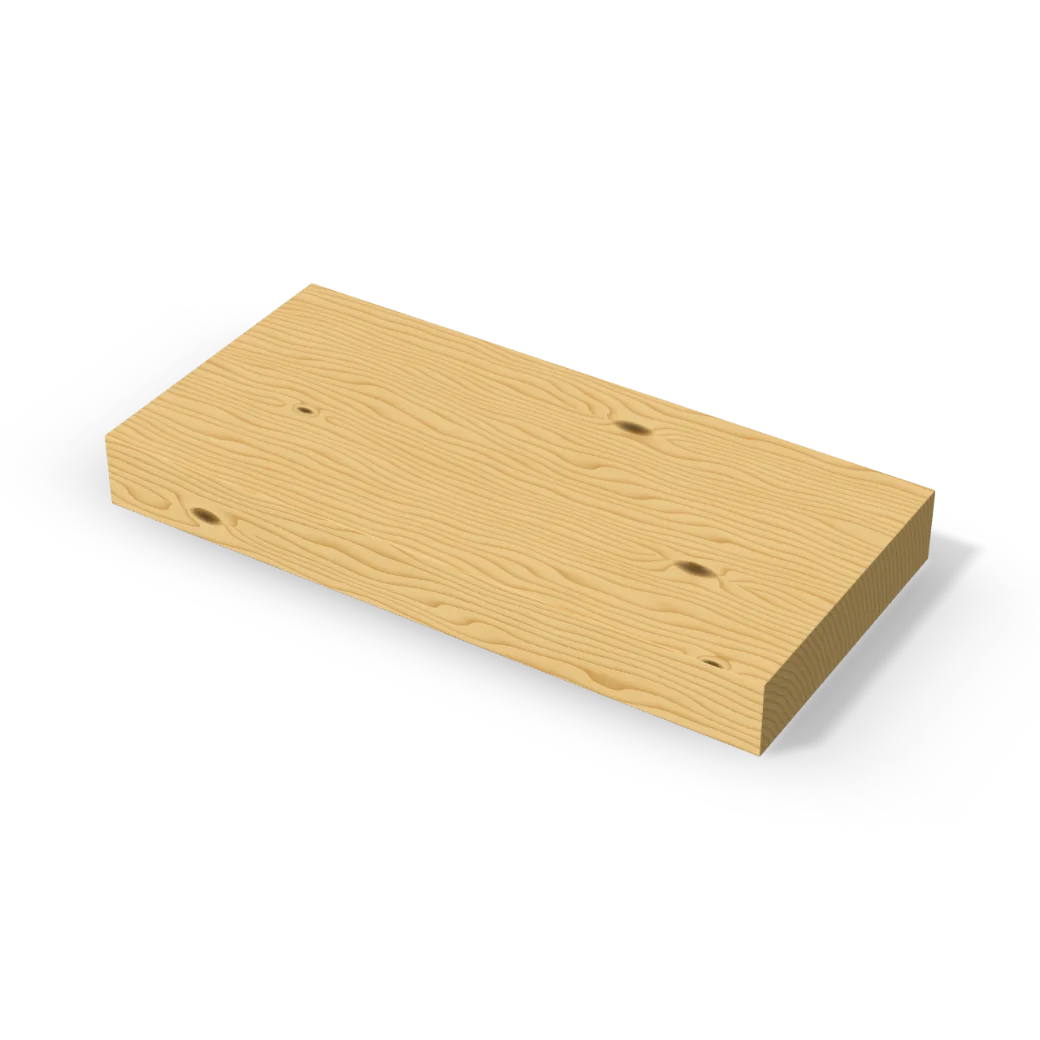

47 x 200mm C24 Carcassing Timber, 4.8m, product render

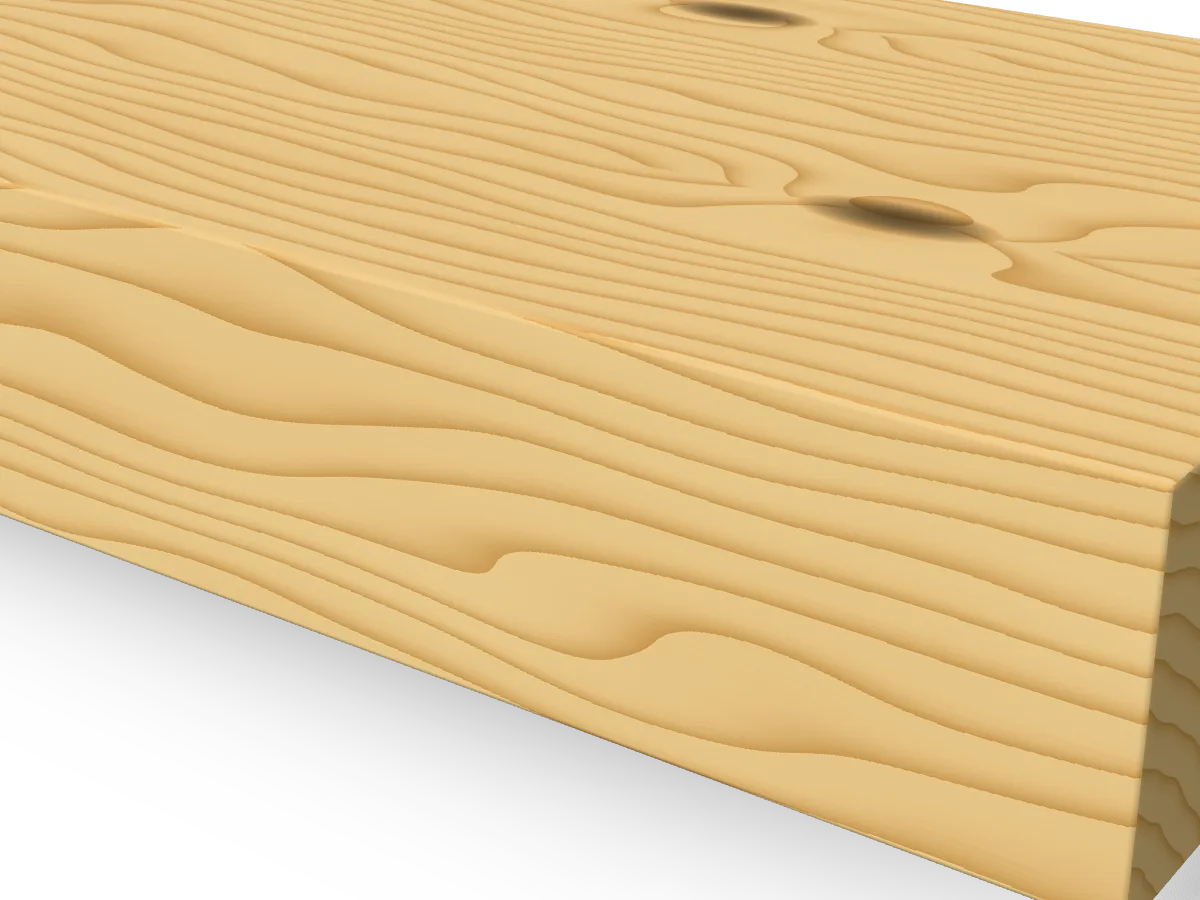

47 x 200mm C24 Carcassing Timber, 4.8m, close-up of the edge

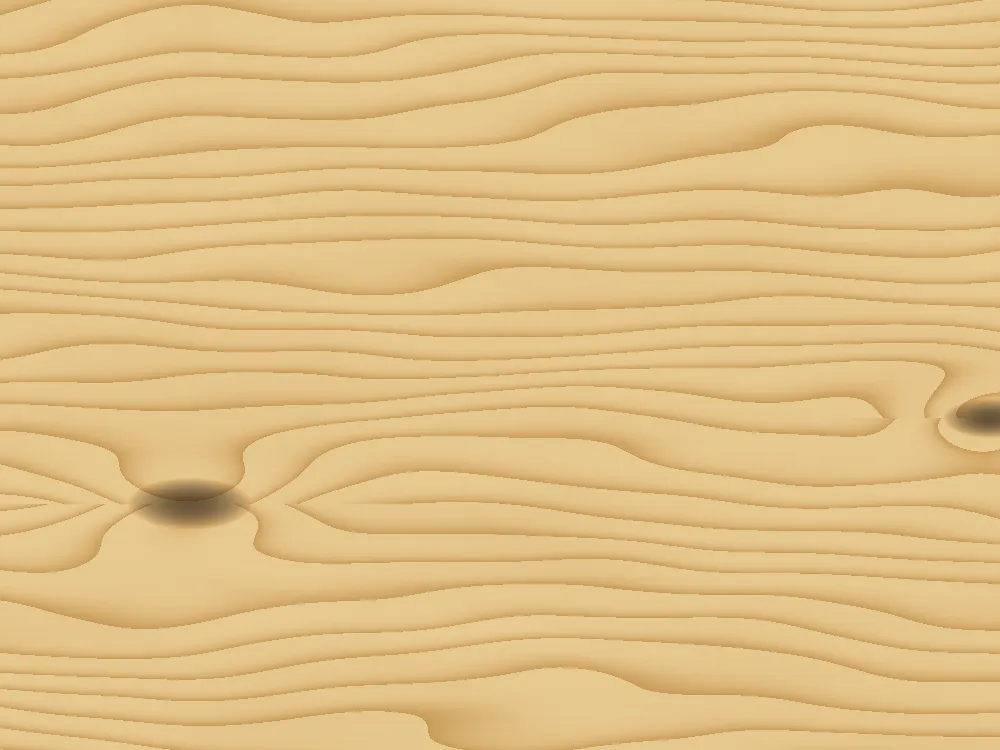

47 x 200mm C24 Carcassing Timber, 4.8m, surface close-up

Drag to turn

Rendered from the board's real build-up and thickness. Colour and grain vary from sheet to sheet.

SKU E2-60005C24 carcassing

47 x 200mm C24 Carcassing Timber

Name: 47 x 200mm C24 Carcassing Timber, 4.8m
SKU: E2-60005
Price: 29.52 GBP
Availability: InStock

4.8m lengthFSC®

£24.60 ex VAT per length £29.52 inc VAT

In stock. Delivered in 1 to 3 working days.

Size

4.8m long 4.8m long 4.8m long

Price breaks, per length

1 to 59

£24.60

60+

£23.12

Quantity

Line total £24.60 ex VAT

How many do I need?Work it out from the total run in metres

Total run (m)

Allow for cuts

0 lengthsEach length is 4.8m

A guide only. Check your own measurements and allow for layout, especially with tongue and groove.

21.7kgWeight per length

4.8mLength

1 to 3 daysWorking days

Delivery

£24.60ex VAT per length

About this timber

Deep 47 x 200mm C24 joists in 4.8m lengths, the common section for upstairs floors, flat roofs and loft conversions spanning up to about 4m, depending on loading and centres. Kiln dried, strength graded and regularised, so joists sit level without packing.

Heavy at over 20kg a length, it needs two people for long runs. Check span tables or engineer calculations before ordering. For notching and drilling, follow the usual rules: holes in the middle third of the depth, notches in the top edge near supports.

Floor JoistsFlat RoofsLoft ConversionsTrimmers

Specification

SKU	E2-60005
Section	47 x 200mm
Length	4.8m
Weight	21.7kg per length
Wood species	European spruce (whitewood)
Product standard	EN 14081
Strength class	C24
Treatment	Untreated, kiln dried
Edge profile	Eased edges
Finish	Regularised
Exposure	Interior, dry
Structural	Yes, strength graded
Origin	Sweden
FSC® certified	Yes

Delivery and returns

Delivery is to the kerb and priced at checkout from your postcode and the total weight of the order. At 21.7kg per length, a van takes up to 46 of these before the order moves to a forklift or pallet delivery.

Zone	Up to 1,000kg	1,000 to 2,000kg	Heavier loads
Zone 1 London, Essex and inside the M25	£50.00 van	£125.00 per load	£125.00 per 24t load
Zone 2 Home Counties, Kent, Sussex, Hampshire and East Anglia	£70.00 van	£100.00 pallet	£150.00 per 24t load
Zone 3 Midlands, the South West and Norfolk	£90.00 van	£100.00 pallet	£250.00 per 24t load
Zone 4 North of England, Wales and mainland Scotland	Pallet, priced at checkout	Priced at checkout	Up to 6.4t by pallet
