44mm
Drag to turn

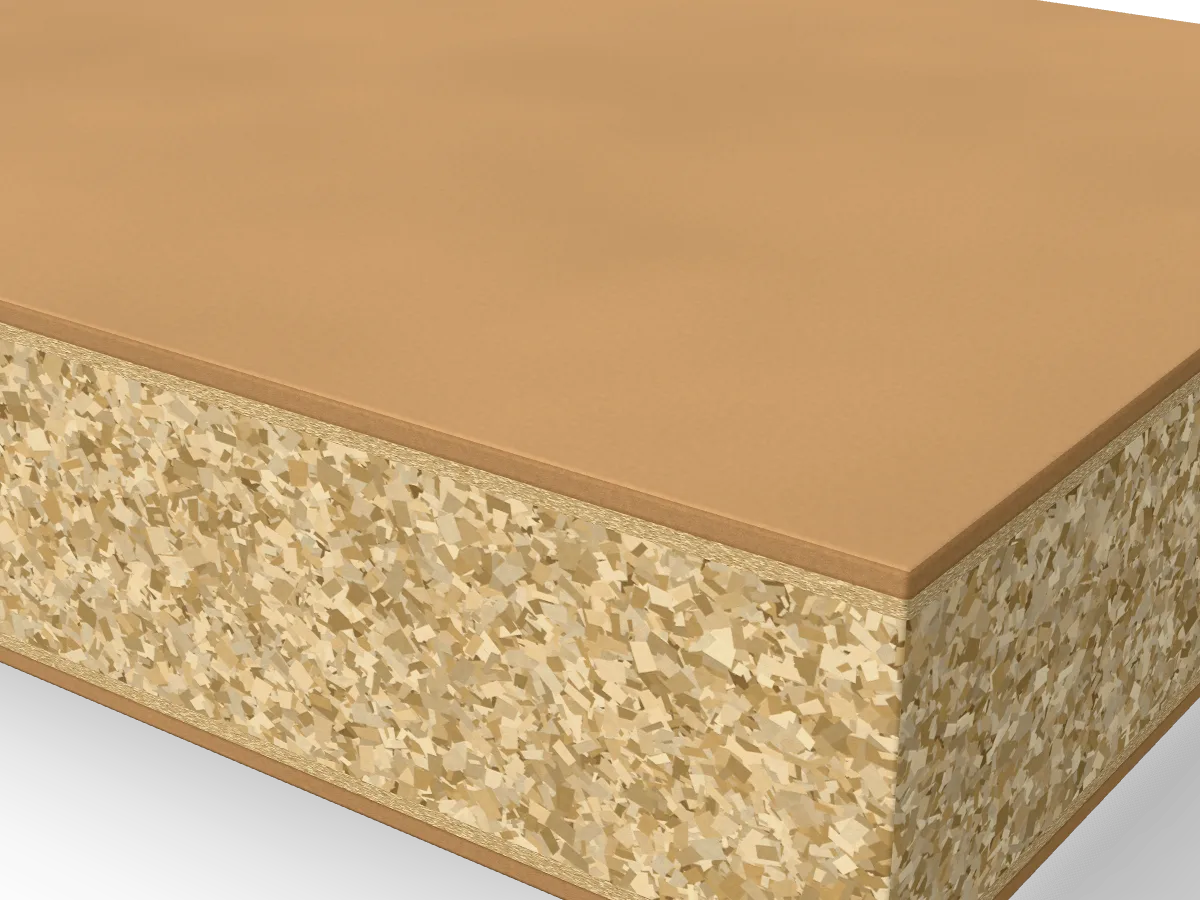

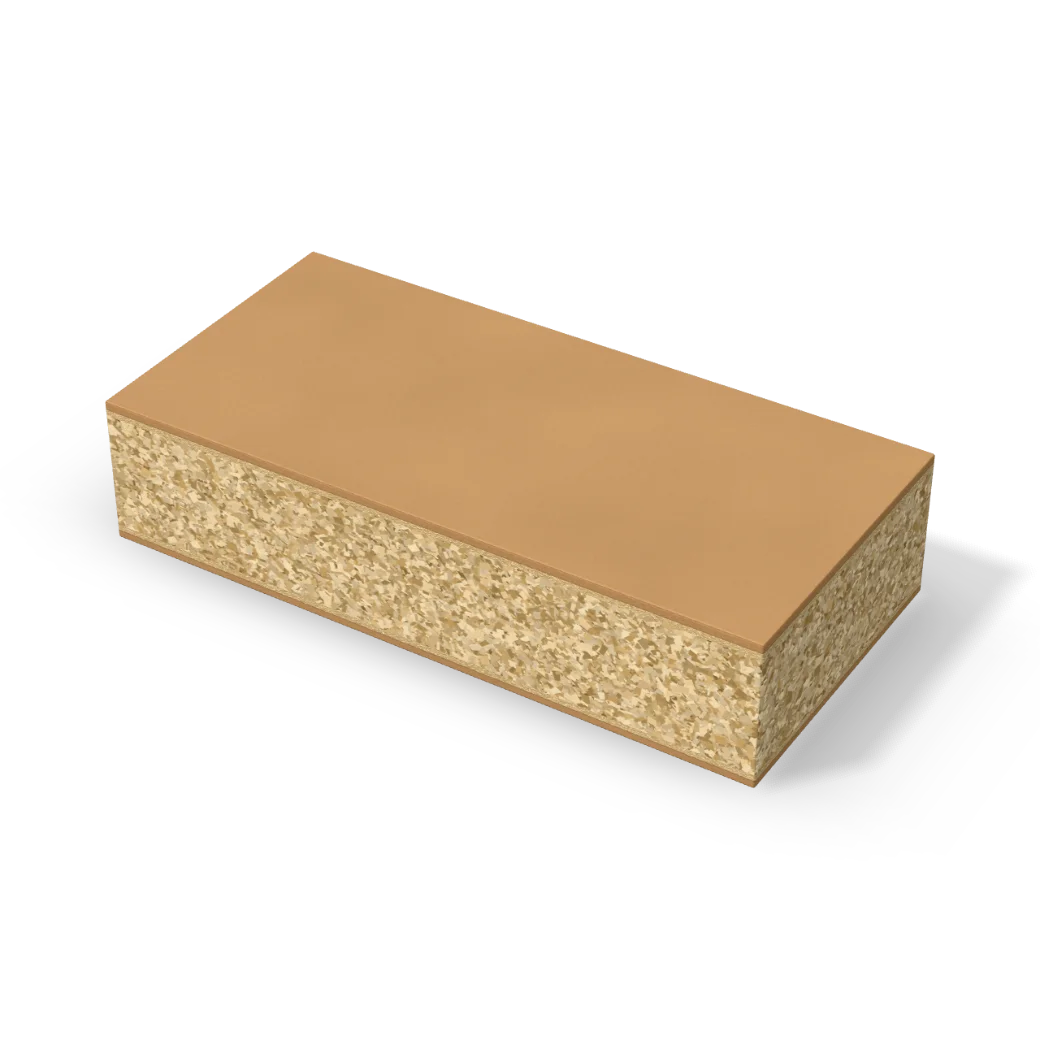

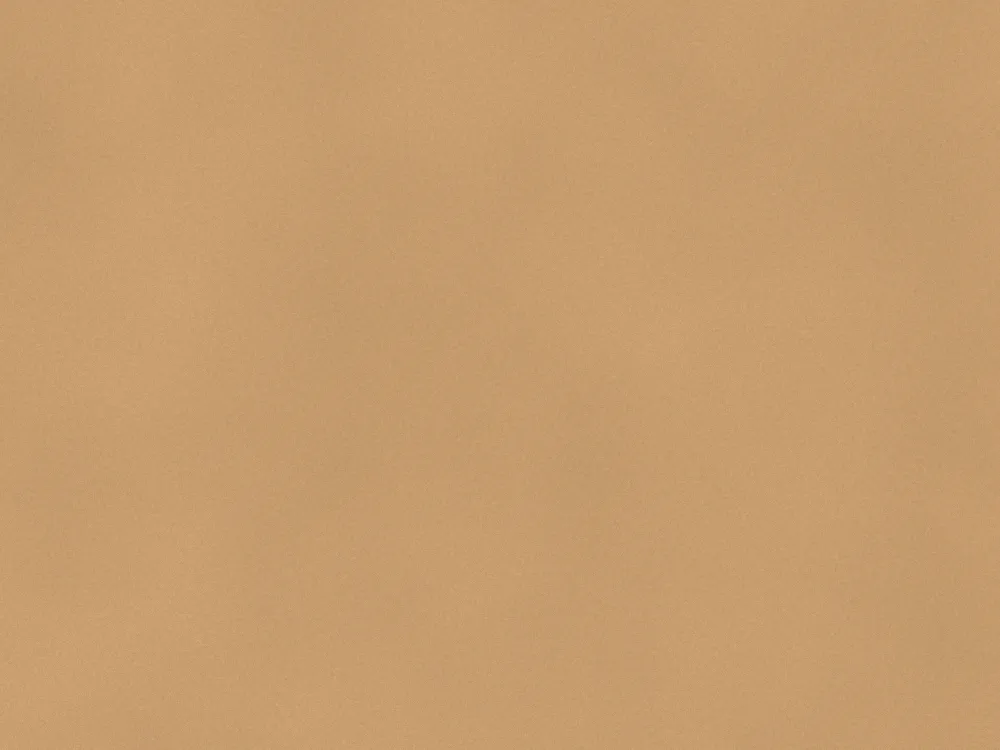

Rendered from the board's real build-up and thickness. Colour and grain vary from sheet to sheet.
54mm FD60 Fire Door Blank
2135 x 1020mmFSC®Formaldehyde E1
£145.00
ex VAT per sheet
£174.00 inc VAT
Ordered in for you. Delivered in 3 to 5 working days.
Line total £145.00 ex VAT
How many do I need?Work it out from your room or area
0 sheetsEach sheet covers 2.18 m²
A guide only. Check your own measurements and allow for layout, especially with tongue and groove.
82.3kgWeight per sheet
2.18 m²Coverage
3 to 5 daysWorking days
About this board
A 54mm FD60 blank from Halspan in 2135 x 1020, for one-hour fire doors on stairwells, plant rooms and compartment walls in commercial and multi-occupancy buildings. The dense particleboard core is faced with MDF and arrives unlipped for making to size.
FD60 doors need the correct intumescent seals, hinges and frame, so specify the whole doorset from the Halspan data sheet. Each blank weighs over 80kg, so plan lifting and machining with two people or a vacuum lifter. Made to order within three to five days.
Stairwell DoorsPlant RoomsCompartment WallsCommercial Buildings
Specification
| SKU | E2-85002 |
|---|---|
| Brand | Halspan |
| Thickness | 54mm |
| Size | 2135 x 1020mm |
| Weight | 82.3kg per sheet |
| Coverage | 2.18 m² per sheet |
| Face | MDF, both sides |
| Core | Solid particleboard |
| Formaldehyde class | E1 |
| Fire rating | FD60, tested to BS 476-22 |
| Edge profile | Unlipped, square |
| Finish | Sanded, ready to veneer or paint |
| Exposure | Interior |
| Structural | No |
| Origin | United Kingdom |
| FSC® certified | Yes |
Delivery and returns
Delivery is to the kerb and priced at checkout from your postcode and the total weight of the order. At 82.3kg per sheet, a van takes up to 12 of these before the order moves to a forklift or pallet delivery.
| Zone | Up to 1,000kg | 1,000 to 2,000kg | Heavier loads |
|---|---|---|---|
| Zone 1 London, Essex and inside the M25 | £50.00 van | £125.00 per load | £125.00 per 24t load |
| Zone 2 Home Counties, Kent, Sussex, Hampshire and East Anglia | £70.00 van | £100.00 pallet | £150.00 per 24t load |
| Zone 3 Midlands, the South West and Norfolk | £90.00 van | £100.00 pallet | £250.00 per 24t load |
| Zone 4 North of England, Wales and mainland Scotland | Pallet, priced at checkout | Priced at checkout | Up to 6.4t by pallet |
